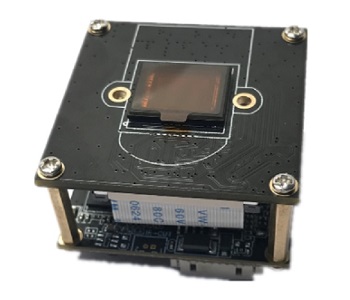

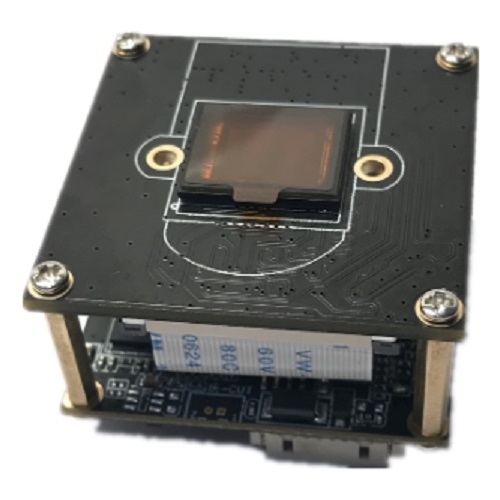

1080p, 1/2.9" SmartSens SC235HAI CMOS, Novatek NT98568, supreme low light performance, video codec: H.265 / H264 / MJPEG, up to 30 fps in 1920 x 1080 resolution, triple streaming, PoE (optional), ONVIF Profile S
*lens not included
- Overview
- Specifications
- Downloads
Features
1/2.9" SmartSens SC235HAI CMOS sensor
2 Megapixels
SmartClarity-3 series with supreme low light performance
Video codec: H.265, H.264, MJPEG
Triple individually configurable video streams
Up to 30 fps in 1920 x 1080 resolution; 30fps in all other resolutions
HDR
Power over Ethernet (optional)
Supporting ONVIF Profile S
| System on Chip (SoC) | Novatek NT98568 |
| Image Sensor | 1/2.9" SmartSens SC235HAI CMOS |
| Lens | Not included |
| Lens control | Motorized zoom & focus, fixed iris |
| Minimum Illumination | 0.001 Lux/F1.2 (color); 0.0005 Lux/F1.2 (B/W) |
| HDR | 100dB |
| Video | Codec: H.265, H.264, Motion JPEG Resolutions: 1920 x 1080 to 480 x 272 Frame rate: up to 30 fps in 1920 x 1080; up to 30 fps in all other resolutions Streaming: triple Rate control: VBR/CBR/fixed QP |
| Memory | 256 MB DRAM, 128 MB SPI NAND Flash, microSD socket for edge recording |
| Network | Network Interface: 100 Mbps Ethernet, USB interface for optional Wi-Fi/5G module Supported Protocols: IPv4, IPv6, ICMP, IGMP, QoS, TCP, UDP, ARP, DHCP, DNS, DDNS, DNS-SD, mDNS, zeroconf, HTTP, HTTPS, NTP, RTP, RTCP, RTSP, TLS, UPnP Supported Protocols (optional): RTMP, SFTP, SIP, SMB/CIFS, SMTP, SNMPv3, SRTP/SRTCP, SSH, WebRTC, P2P, PPPoE, 802.1X |
| Audio | Audio Coding: G.711 PCM, G.726 ADPCM, MP3 (optional), AAC LC (optional) Audio Interface: 1 audio in, 1 line out |
| Software Integration | ONVIF, CGI, embedded applications (optional) |
| System Integration | 2 alarm in, 2 alarm out, RS-485 |
| Power Source | DC 12V, Power over Ethernet (optional) |
| Power Consumption | Typical 2.8W |
| Operation Condition | -20~50°C |
| Dimension (L x W x H) | 38mm*38mm*23mm |
| Weight | 22g |
| Datasheet | 2025.5.21 | Download | |
| Firmware | coming soon | ||
| Quick installation guide | coming soon | ||
| User’s manual | coming soon |
