1000-meter transmission distance, remote camera control, 2 megapixels, CS-mount, DC-iris, Day & Night, simultaneously dual H.264 streams, microSD slot
*lens not included
- Overview
- Specifications
- Downloads

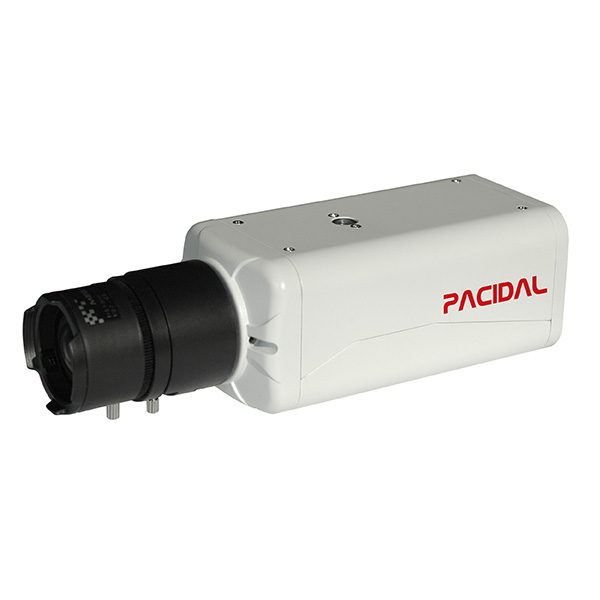

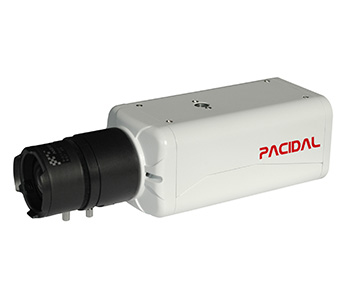

Pacidal DBX405 is a new-generation 2-megapixel, box-type camera adopting digital TV technology that features excellent full HD quality transmission of videos over coaxial cables. If you are considering upgrading your current analog CCTV system to HD quality surveillance, the DTV surveillance is definitely your best choice. The installation process is quick and easy. The existing coaxial cables can be reused and its structure is the same as CCTVs. So there is no need to re-plan the structure or re-deploy the cables. DBX405 supports day and night function. It transmits simultaneously dual video streams in H.264 (both individually configurable), including one HD stream and one SD stream, both at full frame rates (30fps). The transmission distance can be up to 1000 meters (3300 ft.) without any extra repeater. DBX405 is definitely your best cost-effective surveillance camera to choose.
Features
Excellent HD video quality over coaxial cables
Transmission distance up to 1000 meters (3300 ft.) without repeaters, using 5C-2V or RG-6 coaxial cables; 500 meters with 3C-2V or RG-59 coaxial cables
1/2.7” CMOS with 1920 x 1080 resolution
Dual, individually configurable video streams in H.264, including one HD stream and one SD stream, both at 30 fps
CS-mount (*lens not included)
DC-iris control
Mechanical IR-cut removable filter for Day and Night function (optional)
MicroSD card slot for local storage
Image Sensor | 1/2.7” CMOS with 1920 x 1080 resolution |
Lens (optional) | CS-mount IR-corrected |
Shutter time | 1/10000 s to 1/8 s |
Iris control | DC-iris |
Day and Night | Automatically removable infrared-cut filter (optional) |
Minimum Illumination | 0.2 Lux/F1.2 (Color) 0.03 Lux/F1.2 (B/W) |
Video | Compression: H.264 (MPEG-4 Part 10/AVC) Resolutions: 1920 x 1080 to 320 x 180 Frame rate: up to 30 fps in all resolutions Streaming: dual, individually configurable H.264 streams with resolutions in one HD stream and one SD stream, both at 30 fps Controllable frame rate and bit rate, VBR/CBR H.264 |
Image Settings | Brightness, contrast, color saturation, sharpness, white balance, backlight compensation, exposure control, flicker control, fine-tuning of behavior at low light conditions, noise filter, flipping & mirror, time stamp, text overlay, privacy mask |
Audio | Streaming: one-way Compression: AAC LC, G.711 PCM Input/output: built-in microphone, external line out |
DTV | Supported standards: DVB-T Control channel: RS-232 Transmission distance: 1000 meters with 5C-2V or RG-6 coaxial cables, 500 meters with 3C-2V or RG-59 Series connection: external power pass filter Security: multi-level user access with password protection, address filtering, encryption, digest authentication, user access log |
Viewing System | Digital television: with a built-in DVB-T receiver--directly connecting to digital antenna input; otherwise--through a DVB-T set-top box DVR/NVR: 4/8/16 channel DTV DVR/NVR PC: through a DTV capture card Mobile devices: Android, iOS (through NVR) |
System Integration | Application programming interface: open API for software integration, SDK, ONVIF Intelligent video: face detection and recognition (optional), motion detection Alarm triggers: intelligent video, audio detection, digital inputAlarm actions: save to camera microSD/microSDHC cards (cards not included), play audio alerts, relay output activation |
Casing | Metal |
Memory | 128 MB RAM, 128 MB flash |
Power Source | DC 12V~57V Power consumption: typical 2.8W, maximum 3.84W |
Network Connector | BNC for DTV video transmission & control channels |
Local Storage | MicroSD slot |
Alarm input/output | One digital input, one relay output (30W) |
LED Indicators | System and network status indicators |
Users | Broadcasting to unlimited numbers of users |
Operating Conditions | -20℃ ~50℃ (-4℉~122℉) 20~80% RH (noncondensing) |
Approvals | CE, FCC, RoHS |
Dimensions (L x W x H) |
120 mm (4.72") x 61 mm (2.4") x 51 mm (2.01") |
Weight | 248 g (0.548 lb.) |
