8-channel, full HD video streams over coaxial cables, simultaneously dual compressed H.264 streams for each channel, 240 fps
*HDD not included
- Overview
- Specifications
- Downloads

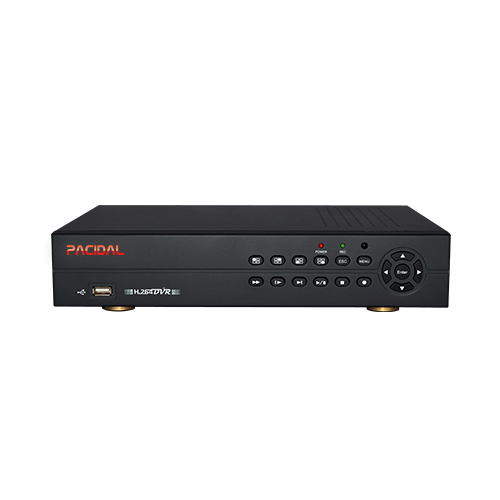

Pacidal DVR2008 is a 8-channel digital video recorder with an embedded Linux operation system. It is a new-generation full HD DVR adopting the latest digital TV technologies with substantial innovations and excellent performance. DVR1004 is fully-integrated with Pacidal DTV cameras, which transmit multiple compressed H.264 video streams over coaxial cables, and is especially suitable for current CCTV surveillance users longing for upgrading analog security systems into full HD video quality. The DTV surveillances, including DTV cameras and DTV DVRs, are the best choice for CCTV surveillance upgrades due to its easiness in installation and efficiency in deployment. Since coaxial cables are the media of video/audio transmission in the DTV surveillance, most existing cables in an CCTV system can be retained without substitution. So there is no need to re-plan and re-deploy a new structure, which significantly saves installation time and costs.
Features
8-channel full HD 1080p real-time recorder
Multiple compressed H.264 videos streams over a single coaxial cable
The original coaxial cables in a CCTV system can be reusable.
Dual, individually configurable video streams in H.264 for each channel, including one HD stream and one SD stream, both at 30 fps
Easy installation: no need to re-deploy or re-plan the structure
Greater transmission distance compared to CCTV DVRs an HD-SDI DVRs
DRAM | 1GB DDR3 RAM |
OS | Embedded Linux system |
Input devices | USB mouse |
HDD | HDD: 2 SATA ports (HDD not included) HDD capacity: max. 8TB eSATA: 1 eSATA port, max. HDD capacity 16TB |
Video | Video input: 8 channels (BNC) Video out: 1 HDMI, 1 VGA Video compression: H.264 Video streaming: dual streams for each channel, including one 1080p stream plus one VGA stream, both at 30 fps |
Live view | Display splits: 1/4/9 Resolution: 1080p @ full screen; 1080p @ quad-split; VGA @ eight-split OSD information: camera title, date, time, video loss, motion detection, recording mode |
Recording | Resolution: 1920x1080 @ full screen; VGA @ quad-split & eight-split Event: Alarm I/O triggered (optional), motion detection, video loss, HDD error Modes: manual/schedule/event Motion detection: supported |
Playback & backup | Playback channels: 1/4/8 Search modes: timeline/event Playback control: Play/fast forward/slow forward at 6 different speed, frame by frame Backup mode: by converting backup videos into .avi formats and saving to a USB flash drive |
Network | Interface: Gigabit Ethernet, RJ-45 Supported protocols: HTTP, DHCP, Static IP, DNS, PPPoE, DDNS, FTP, NTP, RDATE, SSH, UPnP, SMTP Remote operation: Through PC software or APP |
Security | Authorization: max. 10 group accounts, with hiearchical authority Multiple users: supporting 3 users log-in on client side by side software or browser User access logs: System operation logs, users' log-in time, IP, and selected videos |
Power | Power supply: DC12V 4A Power consumption: 7.94W (w/o HDD) |
LED indicators | Camera status, WAN, HDD, power |
USB interface | USB 2.0 x 2, USB 3.0 x 1 |
Operating conditions | 0℃ ~45℃ (32℉~113℉) |
Dimensions (L x W x H) |
315 mm (12.4") x 220 mm (8.7") x 70 mm (2.8") |
Weight | 2.2 kg (4.63 lb.) |
Approvals | CE, FCC, RoHS |
