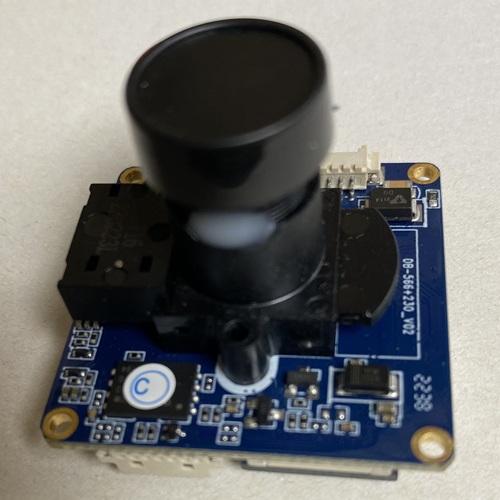

Ordering code: NMTS2230H
2MP, 1/2.8" SmartSens SC230AI CMOS, Novatek NT98566, supreme low light performance, video codec: H.265 / H264 / MJPEG, up to 30 fps in 1920 x 1080 resolution, triple streaming, PoE (optional), ONVIF Profile S
*lens not included
- Overview
- Specifications
- Downloads
Features
1/2.8" SmartSens SC230AI CMOS sensor
2 Megapixels
SmartClarity-2 series with supreme low light performance
Video codec: H.265, H.264, MJPEG
Triple individually configurable video streams
Up to 30 fps in 1920 x 1080 resolution; 30fps in all other resolutions
HDR
Power over Ethernet (optional)
Supporting ONVIF Profile S
System on Chip (SoC) | Novatek NT98566 |
Image Sensor | 1/2.8" SmartSens SC230AI CMOS |
Lens | Not included |
DC-iris | Supported (optional) |
Minimum Illumination | 0.001 Lux/F1.2 (color); 0.0005 Lux/F1.2 (B/W) |
HDR | 86dB |
Video | Codec: H.265, H.264, Motion JPEG Resolutions: 1920 x 1080 to 480 x 272 Frame rate: up to 30 fps in 1920 x 1080; up to 30 fps in all other resolutions Streaming: triple Rate control: VBR/CBR/fixed QP |
Memory | 128 MB DRAM, 128 MB SPI NAND Flash |
Network | Network Interface: 100 Mbps Ethernet Supported Protocols: IPv4, IPv6, ICMP, IGMP, QoS, TCP, UDP, DHCP, DNS, DDNS, mDNS, zeroconf, HTTP, HTTPS, NTP, RTP, RTCP, RTSP, TLS, UPnP, ARP Supported Protocols (optional): FTPS, RTMP, SIP, SMB/CIFS, SMTP, SNMPv3, WebRTC, P2P, 802.1X, PPPoE |
Audio | Audio Coding: G.711 PCM, G.726 ADPCM, MP3 (optional), AAC LC (optional) Audio Interface: microphone in, line out |
Software Integration | ONVIF, CGI, embedded applications (optional) |
System Integration | 1 alarm in, 1 alarm out |
Power Source | DC 12V, Power over Ethernet (optional) |
Power Consumption | Typical 2.8W |
Operation Condition | -20~50°C |
Dimension (L x W x H) | 38mm*38mm*9.5mm |
Weight | 26g |
Datasheet | 2022.5.31 | Download | |
Firmware | coming soon | ||
Quick installation guide | coming soon | ||
User’s manual | coming soon |
