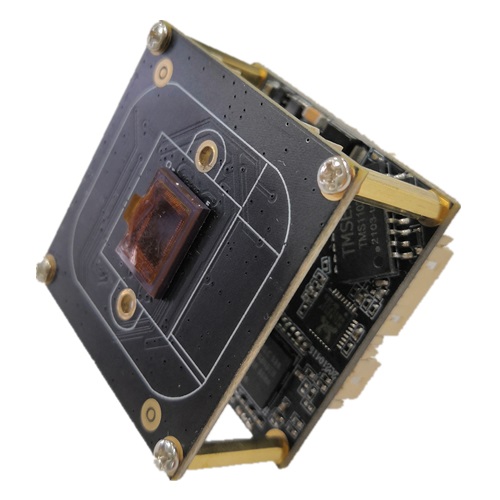

5MP, 1/2.8" SONY IMX335 CMOS, HiSilicon Hi3516AV300, supreme low light performance, video codec: H.265 / H264 / MJPEG, up to 50 fps in 2592 x 1944 resolution, triple streaming, PoE (optional), ONVIF Profile S
*lens not included
- Overview
- Specifications
- Downloads
Features
Neural network acceleration engine with processing performance up to 1.0 TOPS
1/2.8" SONY IMX335 CMOS sensor
5 Megapixels
Starvis series with supreme low light performance
Video codec: H.265, H.264, MJPEG
Triple individually configurable video streams
Up to 50 fps in 2592 x 1944 resolution; 60fps in all other resolutions
HDR
Power over Ethernet (optional)
Supporting ONVIF Profile S
| System on Chip (SoC) | HiSilicon Hi3516A V300 |
| Image Sensor | 1/2.8" SONY IMX335 CMOS sensor |
| Lens | Not included |
| DC-iris | Supported |
| Minimum Illumination | 0.005 Lux/F1.2 (color); 0.001 Lux/F1.2 (B/W) |
| HDR | ≥80dB |
| Video | Codec: H.265, H.264, Motion JPEG Resolutions: 2592 x 1944 to 480 x 272 Frame rate: up to 50 fps in 2592 x 1944; up to 60 fps in all other resolutions Streaming: triple Rate control: VBR/CBR/fixed QP |
| Memory | 1024 MB DRAM, 8 GB eMMC |
| Network | Network Interface: 100 Mbps Ethernet Supported Protocols: IPv4, IPv6, ICMP, IGMP, QoS, TCP, UDP, DHCP, DNS, DDNS, mDNS, zeroconf, HTTP, HTTPS, NTP, RTP, RTCP, RTSP, TLS, UPnP, ARP Supported Protocols (optional): FTPS, RTMP, SIP, SMB/CIFS, SMTP, SNMPv3, WebRTC, P2P, 802.1X, PPPoE |
| Audio | Audio Coding: G.711 PCM, G.726 ADPCM, MP3 (optional), AAC LC (optional) Audio Interface: microphone in, line out |
| Software Integration | ONVIF, CGI, embedded applications (optional) |
| System Integration | 1 alarm in, 1 alarm out, 1 serial RS-485 |
| Power Source | DC 12V, Power over Ethernet (optional) |
| Power Consumption | Typical 2.8W |
| Operation Condition | -20~50°C |
| Dimension (L x W x H) | 38mm*38mm*9.5mm |
| Weight | 26g |
| Datasheet | 2022.10.23 | Download | |
| Firmware | coming soon | ||
| Quick installation guide | coming soon | ||
| User’s manual | coming soon |
