DTV sample set-product information

DTV Surveillance Sample Set

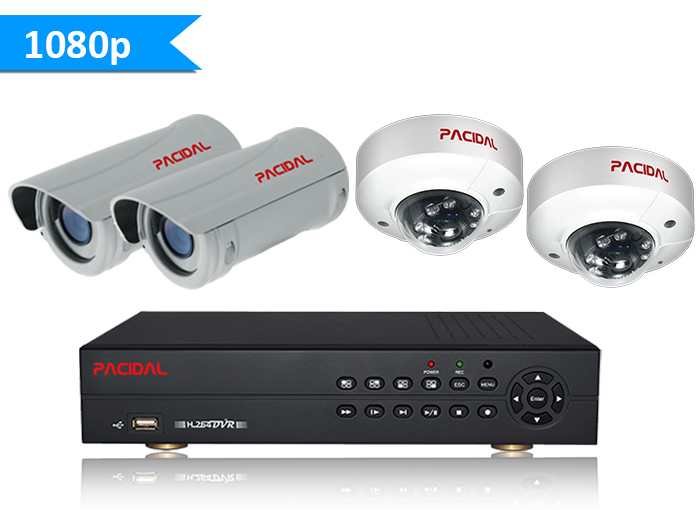

Product picture of DTV cameras (ccHDtv) and DTV DVR

1080p DTV Surveillance Set-Standard

4 DTV cameras + 1 DTV DVR

Compressed H.264 over coaxial cables

Resolution: full HD 1920*1080 (2MP), 30fps

Existing coaxial cables reusable (3C-2V, RG-59)

Long distance transmission 1000m+ (no repeaters)

Robust anti-interference capability

Weatherproof IP67 / IP66

IR LEDs

Smart IR

Price: USD $980



View package details

For 16-ch DTV DVRs, please contact us.

* Shipping fees, taxes, VAT are not included in the price.
specifications

credit card payments by Paypal

download the purchase order here

Product picture of DTV cameras (ccHDtv) and DTV DVR

1080p DTV Surveillance Set-Lite

2 DTV cameras + 1 DTV DVR

Compressed H.264 over coaxial cables

Resolution: full HD 1920*1080 (2MP), 30fps

Existing coaxial cables reusable (3C-2V, RG-59)

Long distance transmission 1000m+ (no repeaters)

Robust anti-interference capability

Weatherproof IP67 / IP66

IR LEDs

Smart IR

Price: USD $590



View package details

For 16-ch DTV DVRs, please contact us.

* Shipping fees, taxes, VAT are not included in the price.
specifications

credit card payments by Paypal

download the purchase order here





What is a DTV surveillance system?

Still looking for HD CCTV solutions to upgrade your analog security system to full HD quality? DTV surveillance, a digital surveillance solution for CCTV upgrades, is definitely the best security solution to advance videos of an original CCTV system into higher resolutions. The DTV surveillance, adopting the ccHDtv technology, is a new-generation security solution that applies digital TV transmission technologies to video and audio transmission in surveillance systems. Signals are transmitted through regular coaxial cables such as 3C-2V or RG-59, the most common cable types in CCTV systems. Although there are existing HD CCTV solutions in the market, the DTV surveillance outperforms other solutions by its: (1) easiness in installation (no need to re-deploy coaxes in original CCTV systems), (2) robust anti-interference capacity on coaxial cables, and (3) extremely long transmission range. With 5C-2V or RG-6 coaxial cables, the transmission distance can be up to 1000 meters (3300 ft.), while 500 meters (1640 ft.) with 3C-2V or RG-59 cables. No additional repeaters are needed.

Learn more about DTV surveillance



Features

Seamless full HD upgrade solution for CCTV surveillance systems
Genuine 1080p resolution, superior to HD CCTV's video quality
Excellent compressed H.264 videos over regular coaxial cables
Existing coaxial cables reusable, no need to re-deploy cables
Robust anti-interference capacity
Extreme long-distance transmission, up to 1000m without repeaters
Return channel supported
Ultra high-definition solution with lower total costs at system level
Easy installation: network expertise not required




specifications



DTV Bullet Camera (DBL206) DTV Mini-dome Camera (DFD207)
Sensor 1920 x 1080 1/2.7" CMOS 1920 x 1080 1/2.7" CMOS
Lens IR corrected, fixed focal,

f = 3.6 or 6 mm, F = 1.8

IR corrected, fixed focal,

f = 3.6 or 6 mm, F = 1.8

Day & Night LED illuminator (50m) LED illuminator (20m)
Smart IR Supported Supported
Casing Metal Metal, IK10
Weatherproof IP67 IP66
Video

Compression: H.264

Resolutions: 1920x1080

Frame rate: 30fps

Dual H.264 streams, VBR/CBR

Compression: H.264

Resolutions: 1920x1080

Frame rate: 30fps

Dual H.264 streams, VBR/CBR

DTV

Standards: DVB-T

Control channel: RS-232

Frequency settings: fixd at 473MHz with 6MHz bandwidth

Standards: DVB-T

Control channel: RS-232

Frequency settings: fixd at 473MHz with 6MHz bandwidth

Viewing system

Digital TV: with a DVB-T receiver

DTV DVR

Mobile devices: Android, iOS (through NVR)

Digital TV: with a DVB-T receiver

DTV DVR

Mobile devices: Android, iOS (through NVR)

Memory 128 MB RAM, 128 MB flash 128 MB RAM, 128 MB flash
Power source DC 12V DC 12V
Connector BNC for DTV transmission and control channel BNC for DTV transmission and control channel
Local storage

Internal microSD card slot

Internal microSD card slot



DTV DVR (DVR1004)
RAM 512MB DDR3 RAM
OS Embedded Linux
HDD capacity max. 4TB SATA x 1 (*HDD not included)
Video

Compression: H.264

Input: 4 channels (BNC)

Output: 1 HDMI, 1 VGA, 1 CVBS

Live view

Display: 1 and 4 channel(s)

Resolution: 1080p at full screen; VGA at 4-split

OSD: camera title, date, time, video loss, motion detection, recording mode

Recording

Speed: 1080p at 30fps

Mode: manual/schedule/event

Playback & backup

Playback mode: 1 and 4 channel(s)

Search mode: timeline/event

Backup mode: saving to a USB flash drive

Network interface Gigabit Ethernet, RJ-45
Power supply DC12V 3A



More details about DBL206, DFD207, and DVR1004


how to buy

Read before you buy

This price is for small-amount sample purchase. We welcome wholesale orders. Please contact us for special discounts on bulk orders.

All price is net from shipping fees and tax duties.

Customers should be responsible for shipping fees, tax duties, import charges, and VAT in the purchase.

The actual shipping fees will be updated in the confirmation e-mail after we received your purchase order.

For payment methods, credit cards and PayPal are accepted. For credit card payment, PayPal account is not required. But please notice your payment should be done by clicking a payment link provided in a Paypal invoice e-mail sent from us.

Read more about payment

Download a purchase order

After downloading the order, please fill-in your purchase information and send it to: e-biz@pacidal.com


download the purchase order here



Shopping process



shopping process



More about shopping process



payment

Payment methods

payment methods

Major credit cards: Master, VISA, Discover, American Express

PayPal



Notifications

Please complete your payment by using a payment link provided in the invoice e-mail.

Payment can only be made through the link provided in the invoice e-mail. Other ways of direct credit card payments not using the link in the invoice e-mail are NOT acceptable.



How to pay?

After receiving a confirmation e-mail by us, please review the order details and then sign back.

You’ll receive an invoice e-mail with a payment link sent by:e-biz@pacidal.com

Click the payment link in the invoice e-mail. Whether you have PayPal account or not, you can make payments through the payment link.

Click “Pay invoice” button. Review your purchase details, select a payment method (credit cards/PayPal), and then approve the payment.



shipping

Ship to

Ship to most countries in Asia and Oceania, North America, and Europe. For other regions, please contact us.

Method

Expressed Mail Service (EMS)

Shipping fees

Customers are responsible for the shipping fees of goods.

For actual shipping fees, please refer to the final confirmation e-mail.

See estimated shipping fees

More about shipping

warranty



2-year limited warranty

The limited warranty period is two-year.

Pacidal’s limited warranty coverage (Read more)



Back to top
